Scaffold Parts and Components
Scaffold Frames
Frame and assembled-frame references for Instant 300 and Instant 400 configurations. Search exact part numbers and confirm the component, connection details, and scaffold family before ordering.
Browse Scaffold Frames Search by part number Request compatibility help
Exact codes for identification Source-supported product details Compatibility help before ordering Quote support for required quantities
Available products
Scaffold Frames products
Browse and filter scaffold frames.
No products match these filters. Clear the filters or request identification help.
Buying and compatibility guide
How to Choose the Correct Scaffold Frames
Identify the component by more than appearance
Scaffold Frames are presented here as part-number references for fleet managers, contractors, and maintenance teams. Available product information includes names, codes, listed dimensions, and explicitly named scaffold families, but a matching photograph, color, or general shape does not prove that two components are interchangeable.
Part number and component role
Confirm the series, width, rung count, frame role, and any V-X or guardrail configuration. Record the complete marking exactly as it appears, including prefixes, suffixes, hyphens, and underscores. Confirm the component's documented role; similar-looking parts may connect differently or belong to a different system family.
Information needed for a compatibility request
- Complete part number and system family
- Component type and installed location
- Nominal and measured dimensions, with units
- Connection or hook details and identifying finish
- Clear photographs of the full part, labels, and both ends
- Required quantity and shipping ZIP code
Technical details
Compare scaffold frames
Distinguish nominal descriptions from illustrated or listed dimensions. These values support identification; they do not approve compatibility or a complete configuration.
| Part | Product | Available configurations | Details |
|---|---|---|---|

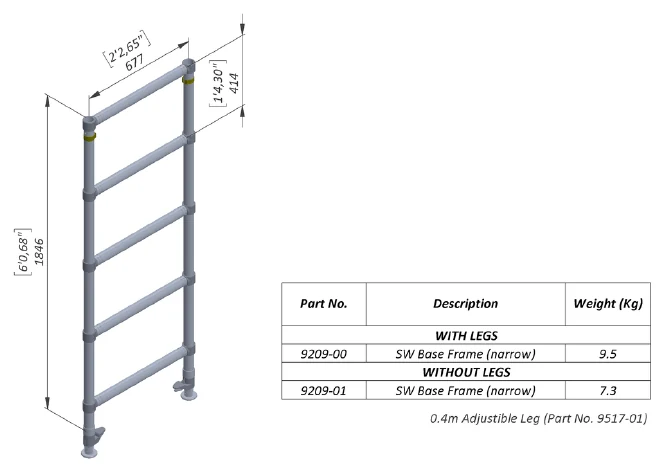

| 9209-00 | Single-Width Scaffold Base Frame with Adjustable Legs | Configuration: Single width; Frame type: Base frame; Overall width shown: 677 mm / approximately 2 ft 2.65 in | View specifications |
| 9209-01 | Single-Width Scaffold Base Frame Without Legs | Configuration: Single width; Frame type: Base frame; Overall width shown: 677 mm / approximately 2 ft 2.65 in | View specifications |

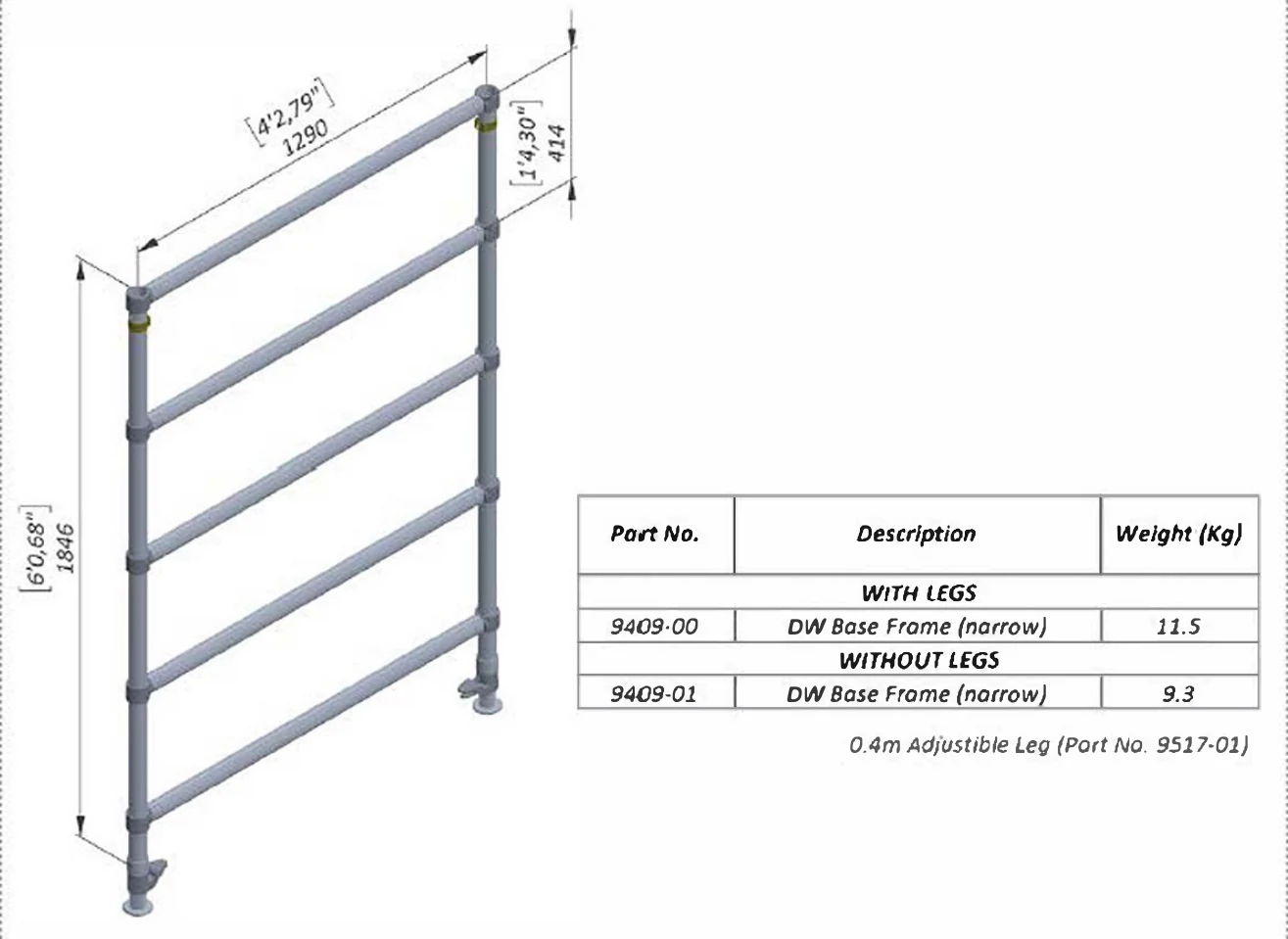

| 9409-00 | Double-Width Scaffold Base Frame with Adjustable Legs | Configuration: Double width; Frame type: Base frame; Overall width shown: 1,290 mm / approximately 4 ft 2.79 in | View specifications |
| 9409-01 | Double-Width Scaffold Base Frame Without Legs | Configuration: Double width; Frame type: Base frame; Overall width shown: 1,290 mm / approximately 4 ft 2.79 in | View specifications |

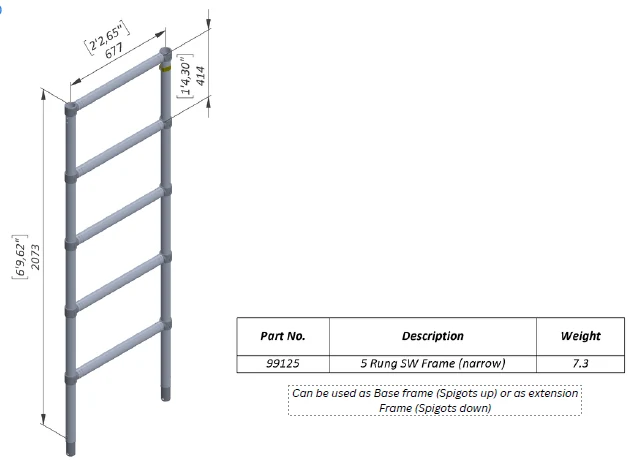

| 99125 | Five-Rung Single-Width Scaffold Frame | Configuration: Single width, narrow; Rung count: Five; Width shown: 677 mm / approximately 2 ft 2.65 in | View specifications |

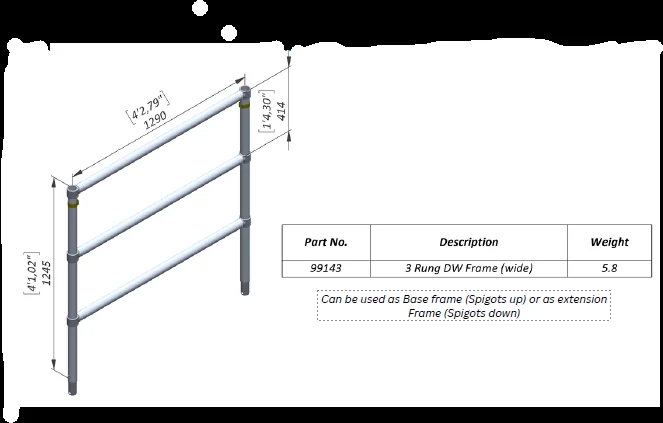

| 99143 | Three-Rung Double-Width Scaffold Frame | Configuration: Double width, wide; Rung count: Three; Width shown: 1,290 mm / approximately 4 ft 2.79 in | View specifications |

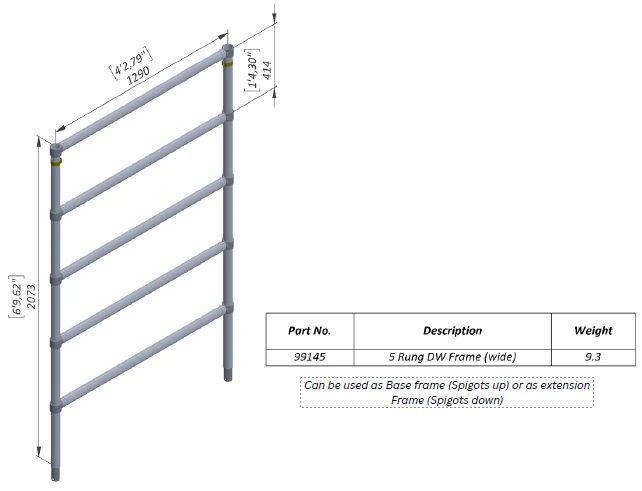

| 99145 | Five-Rung Double-Width Scaffold Frame | Configuration: Double width, wide; Rung count: Five; Width shown: 1,290 mm / approximately 4 ft 2.79 in | View specifications |

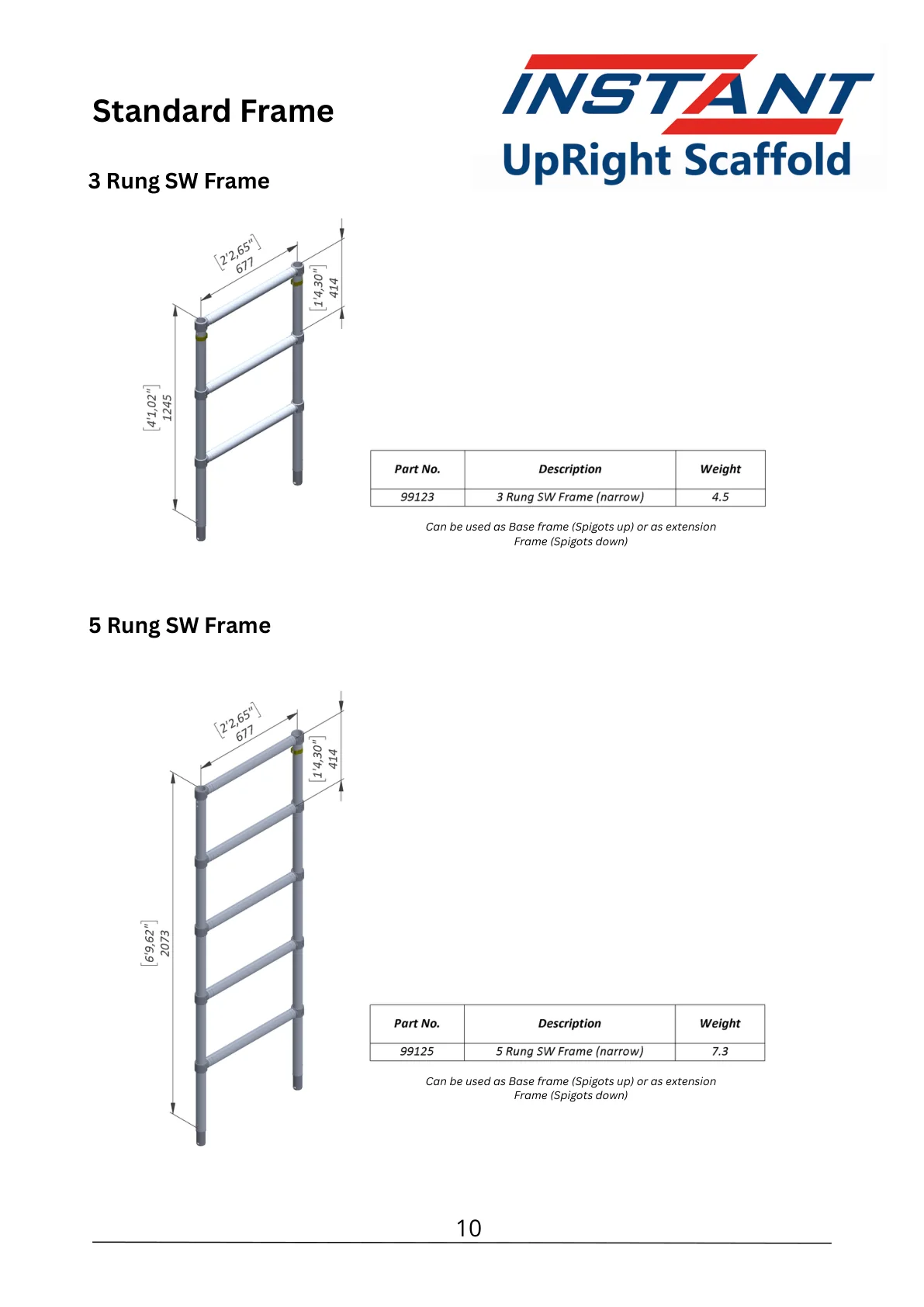

| 99123 | Three-Rung Single-Width Scaffold Frame | Nominal or listed size: Three rungs; single width; Dimension A: 677 mm / 2 ft 2.65 in; Imperial dimension: 1,245 mm / 4 ft 1.02 in; upper section 414 mm | View specifications |

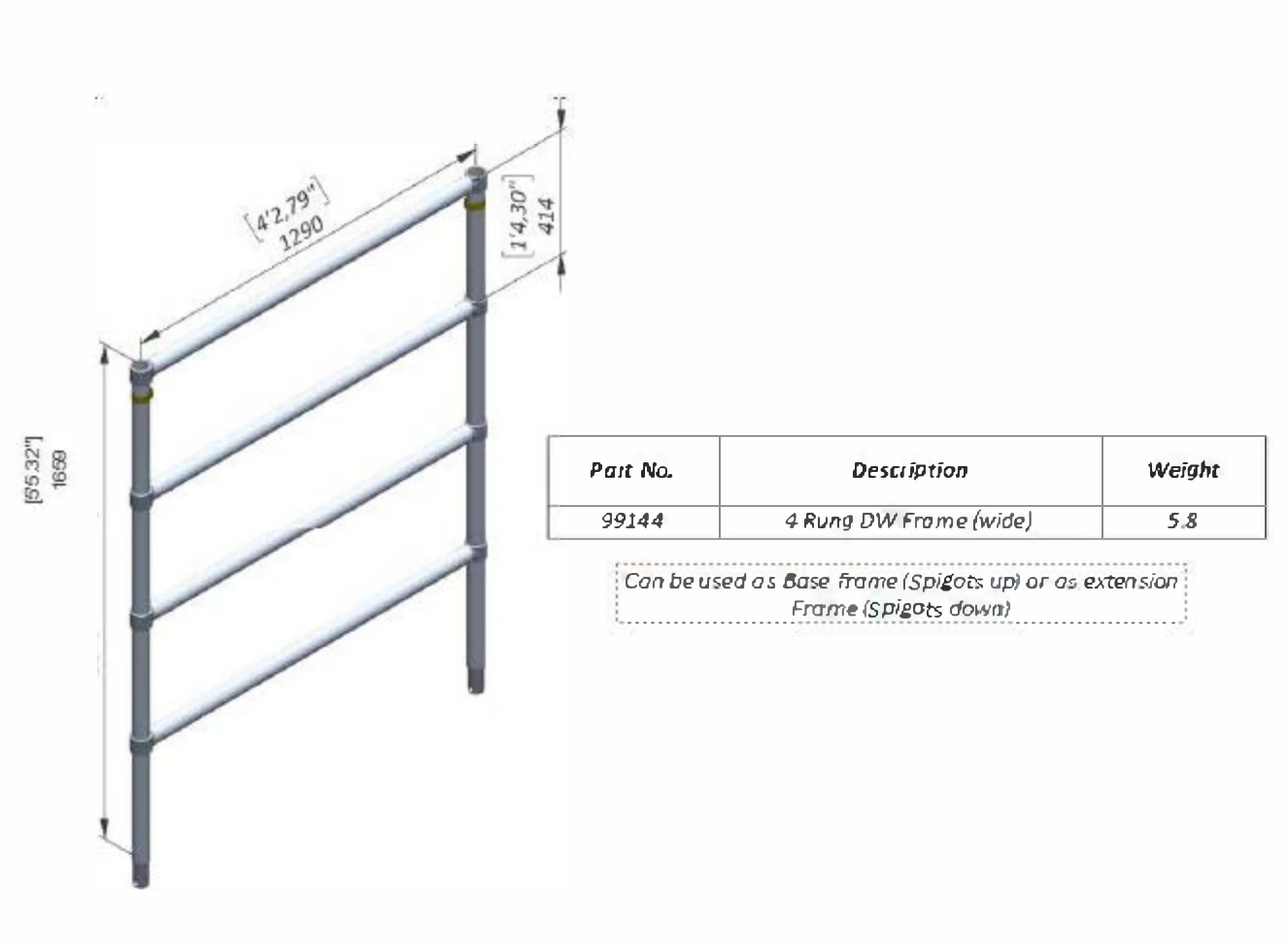

| 99144 | Four-Rung Double-Width Scaffold Frame | Description: Four-rung double-width frame, wide; Orientation stated by source: Base frame with spigots up or extension frame with spigots down; Overall width shown: Approximately 1,290 mm / 4 ft 2.79 in | View specifications |

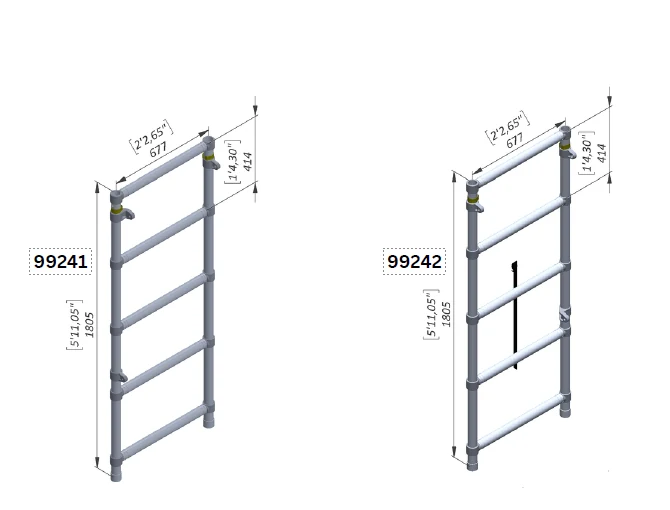

| 99241 | Single-Width V-X Replacement Frame | Configuration: Single-width V-X frame; Weight: 10.2 kg | View specifications |
| 99242 | Single-Width V-X Replacement Frame with Strap | Configuration: Single-width V-X frame with strap; Weight: 10.3 kg | View specifications |

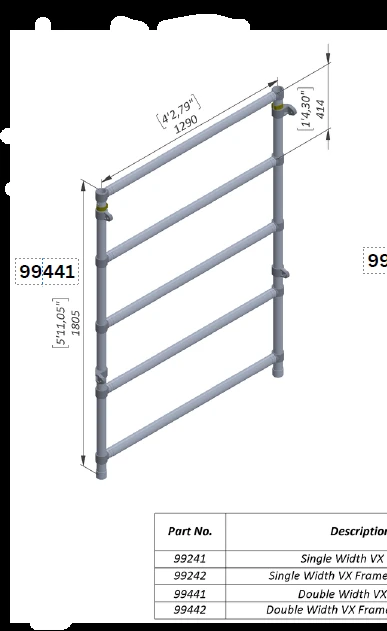

| 99441 | Double-Width V-X Replacement Frame | Configuration: Double-width V-X frame; Width shown: Approximately 1,290 mm / 4 ft 2.79 in; Main frame height shown: Approximately 1,805 mm / 5 ft 11.05 in | View specifications |
| 99442 | Double-Width V-X Replacement Frame with Strap | Configuration: Double-width V-X frame with strap; Width shown: Approximately 1,290 mm / 4 ft 2.79 in; Main frame height shown: Approximately 1,805 mm / 5 ft 11.05 in | View specifications |
Frequently asked questions
How should I identify scaffold frames?
Start with the complete part number and scaffold family. Confirm the series, width, rung count, frame role, and any V-X or guardrail configuration.
Can I order from dimensions alone?
No. Dimensions help narrow the record, but the connection style, system family, and exact configuration must also be verified.
What should I include in a compatibility request?
Include quantity, visible part number, scaffold brand and model, approximate dimensions, shipping ZIP code, and clear photographs of the complete component and connection points.
Exact identification matters
Request scaffold frames pricing or compatibility help
Include the visible product code, scaffold family, quantity, dimensions, and photographs when available.
