Scaffold Parts and Components
Bracing Frames
Bracing-frame records for Instant 300 and Instant 400 systems, including several source-order ambiguities. Search exact part numbers and confirm the component, connection details, and scaffold family before ordering.
Browse Bracing Frames Search by part number Request compatibility help
Exact codes for identification Source-supported product details Compatibility help before ordering Quote support for required quantities
Available products
Bracing Frames products
Browse and filter bracing frames.
No products match these filters. Clear the filters or request identification help.
Buying and compatibility guide
How to Choose the Correct Bracing Frames
Identify the component by more than appearance
Bracing Frames are presented here as part-number references for scaffold repair teams and equipment dealers. Available product information includes names, codes, listed dimensions, and explicitly named scaffold families, but a matching photograph, color, or general shape does not prove that two components are interchangeable.
Part number and component role
Confirm the family and nominal bay length; draft-review records require manual catalog confirmation. Record the complete marking exactly as it appears, including prefixes, suffixes, hyphens, and underscores. Confirm the component's documented role; similar-looking parts may connect differently or belong to a different system family.
Information needed for a compatibility request
- Complete part number and system family
- Component type and installed location
- Nominal and measured dimensions, with units
- Connection or hook details and identifying finish
- Clear photographs of the full part, labels, and both ends
- Required quantity and shipping ZIP code
Technical details
Compare bracing frames

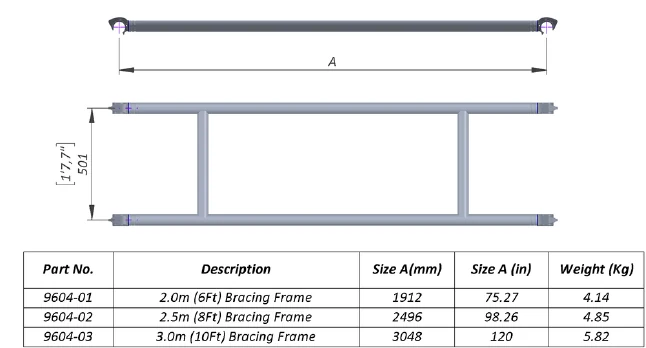

Distinguish nominal descriptions from illustrated or listed dimensions. These values support identification; they do not approve compatibility or a complete configuration.
| Part | Product | Available configurations | Details |
|---|---|---|---|
| 9604-01 | 2.0 m Scaffold Bracing Frame | Nominal length: 2.0 m / 6 ft; Dimension A: 1,912 mm / 75.27 inches; Frame height shown: Approximately 501 mm / 1 ft 7.7 in | View specifications |
| 9604-02 | 2.5 m Scaffold Bracing Frame | Nominal length: 2.5 m / 8 ft; Dimension A: 2,496 mm / 98.26 inches; Frame height shown: Approximately 501 mm / 1 ft 7.7 in | View specifications |
| 9604-03 | 3.0 m Scaffold Bracing Frame | Nominal length: 3.0 m / 10 ft; Dimension A: 3,048 mm / 120 inches; Frame height shown: Approximately 501 mm / 1 ft 7.7 in | View specifications |
Frequently asked questions
How should I identify bracing frames?
Start with the complete part number and scaffold family. Confirm the family and nominal bay length; draft-review records require manual catalog confirmation.
Can I order from dimensions alone?
No. Dimensions help narrow the record, but the connection style, system family, and exact configuration must also be verified.
What should I include in a compatibility request?
Include quantity, visible part number, scaffold brand and model, approximate dimensions, shipping ZIP code, and clear photographs of the complete component and connection points.
Exact identification matters
Request bracing frames pricing or compatibility help
Include the visible product code, scaffold family, quantity, dimensions, and photographs when available.
