Project-specific aviation access
Develop the working area around the aircraft and maintenance task
An aircraft nose platform is not selected from aircraft name alone. The forward fuselage combines curved geometry, sensitive surfaces, cockpit glazing, the radome, access panels, probes, doors, landing gear, and task-dependent no-contact zones. The aircraft model and variant establish a starting point, while the maintenance objective determines where technicians, tools, and components need to be positioned.

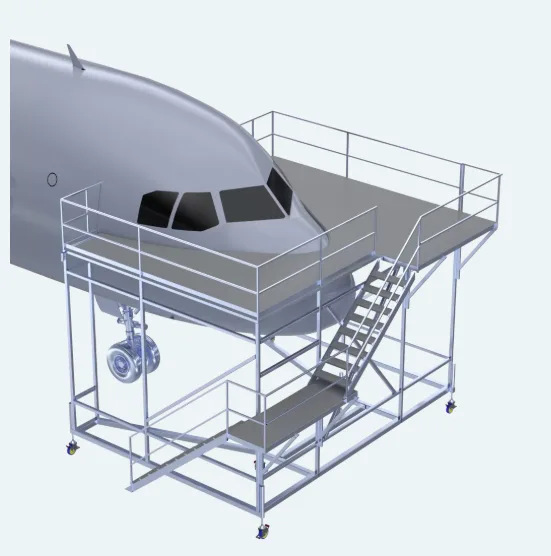

The supplied rendering depicts a platform concept wrapping around the cockpit and forward fuselage, with stairs, guardrails, lower access, and a larger side working area. It communicates a possible access category but does not provide verified dimensions, capacity, aircraft fitment, castor selection, clearance, contact protection, or a final layout. Those details must be developed and approved for the specific project.
Potential discussions can concern windshield inspection or replacement, cockpit-window work, radome access, nose-avionics tasks, forward-fuselage inspection, upper-nose surfaces, or the nose-landing-gear area. Each task creates a different working envelope. A platform intended for windshield access may not provide the depth, clearance, or component path needed for radome removal. Access near the nose gear requires its own clearance and aircraft-condition review.
Aircraft and facility information to document
Identify the manufacturer, exact model, variant, and condition during the work. Record whether the aircraft is on its gear or jacks and whether doors, panels, radome, landing gear, tow equipment, ground-support equipment, or maintenance stands change position during the task. Only submit drawings or photographs your organization is authorized to share.
For each required access point, provide target elevation, desired platform depth, technician count, tools, removed-component route, and prohibited contact zones. Record radome clearance, windshield access, nose-gear clearance, probes, sensors, glazing, finishes, and areas requiring protective interfaces. Aircraft-contact protection cannot be inferred from the rendering and must be part of the reviewed scope.
Facility planning includes floor space, door and hangar clearances, columns, pits, drains, overhead equipment, lighting, utilities, aircraft movement routes, towing, platform movement, and storage. State whether a fixed or mobile concept is preferred, while allowing project review to evaluate floor conditions, castors, stabilization, movement control, and docking clearance.
